Industrial Porcelain Terminal Blocks | High-Temperature Ceramic Wire Connectors

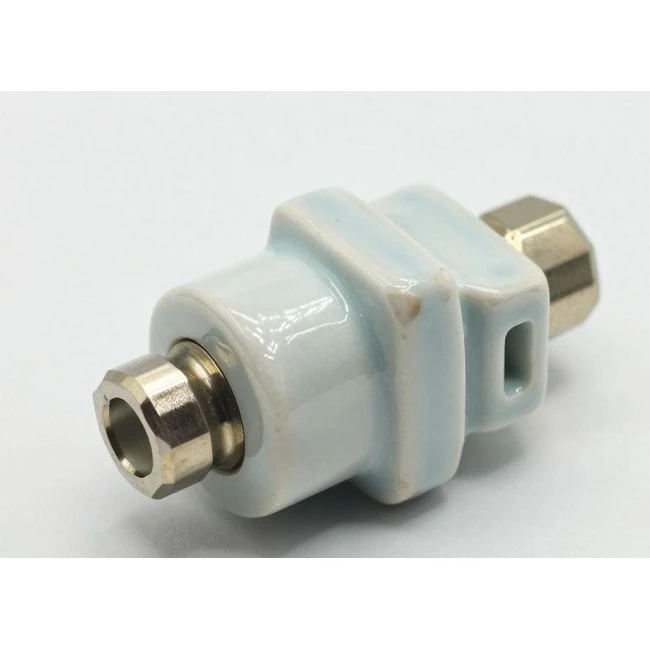

Industrial Porcelain Terminal Blocks are engineered for heavy-duty electrical circuits exposed to continuous thermal stress where standard thermoplastic alternatives (such as PA66 or polycarbonate) degrade or fail. Molded from electrical-grade steatite ceramic and equipped with corrosion-resistant brass inserts, these terminal blocks maintain structural stability, mechanical rigidity, and high insulation resistance at continuous operating temperatures up to 350°C (with specialized high-temperature grades rated up to 500°C).
Technical Specifications
|
Parameter |
Specification Details |
|
Housing Material |
Steatite Ceramic (Grade C221 / C230), Glazed or Unglazed |
|
Metal Insert Material |
Nickel-Plated Brass / Solid Brass |
|
Hardware Material |
Zinc-Plated Steel / Stainless Steel (Grade 304 available) |
|
Continuous Operating Temp. |
Up to 350°C (Standard), 500°C (High-Temp Grade) |
|
Voltage Rating |
250V - 600V AC |
|
Current Rating |
5A to 60A (Dependent on pole size and conductor gauge) |
|
Pole Configurations |
1-Pole, 2-Pole, 3-Pole, 4-Pole (Single, double, and triple compartment options) |
|
Dielectric Strength |
>10 kV/mm |
|
International Certifications |
UL Listed / Recognized components, VDE Certified, CE Compliant |
Product Selection Guide for Engineers
Selecting the appropriate ceramic terminal block prevents system failure and thermal runaway. Evaluate these parameters during your Bill of Materials (BOM) design phase:
Amperage & Conductor Cross-Section: Match the block's current rating (15A, 30A, 50A) directly to your maximum load and wire gauge (1.5 mm² to 10 mm²). Undersized terminals create high-resistance contact points.
Thermal Thresholds:
Standard Steatite: Rated for continuous operation up to 300°C.
High-Alumina Ceramic: Required for environments exceeding 400°C or subject to rapid thermal shock.
Pole Layout & Enclosure Space: Choose single-pole modular blocks for variable layout spacing or fixed multi-pole blocks (2-way, 3-way) for compact terminal boxes.
Hardware & Insert Environment: Specify nickel-plated brass for general industrial use, or upgrade to stainless steel screws for corrosive chemical or high-humidity plants.
Proven Application Environments
These blocks are specified wherever thermal endurance and dimensional integrity are critical design mandates:
Industrial Heating Systems: Electric band heaters, cartridge heater terminations, and tubular heating element hookups.
Thermal Processing Equipment: Industrial annealing ovens, heat-treating kilns, and commercial baking lines.
Lighting Infrastructure: High-Intensity Discharge (HID) fixtures, commercial floodlights, and heavy-duty sauna lighting.
HVAC & Power Control: Boiler control cabinets, generator excitation units, and high-wattage resistor banks.
Manufacturing & Quality Assurance
Procuring direct from our production facility ensures stringent batch control and complete material traceability:
Raw Material Formulation: High-purity steatite powder blended with tightly controlled talc and magnesite ratios to optimize mechanical strength and minimize dielectric loss.
Forming & Kiln Sintering: Shaped via automatic hydraulic dry-pressing and fired in controlled-atmosphere kilns at 1300°C to eliminate internal micro-voids.
Precision Machining: Brass inserts CNC-machined to ± 0.05 mm tolerances and mechanically locked into the ceramic body to eliminate spin-out during high-torque wire installation.
Rigorous Testing Protocols:
- Dielectric breakdown testing at 2500V for 60 seconds.
- Routine torque-retention testing on threaded inserts.
- Thermal shock verification (rapid water quench tests from 300°C).
Compliance Standards: Fully RoHS and REACH compliant, manufactured under certified ISO 9001:2015 quality management systems.
Procurement, Logistics & Customization
Minimum Order Quantity (MOQ): Standard catalog items: 1,000 pcs. Custom tooling or specialized configurations: 3,000 pcs.
Packaging Solutions: Industrial bulk packaging in reinforced, shock-absorbing honeycomb cartons to eliminate transit breakage. Blister packaging available upon request for distribution channels.
Lead Times: Standard catalog stock ships within 5 to 7 business days. Custom machining or non-standard inserts require 3 to 4 weeks.
OEM/ODM Engineering & Rapid Prototyping:
- Custom drawings accepted for non-standard mounting centers, custom bracket integrations, and specialized metric thread dimensions (M3 to M6).
- Fast-Track Prototyping: 3D digital CAD drawings provided for engineering sign-off within 3 to 5 business days, followed by rapid physical sample delivery.
Frequently Asked Questions
Q: Will these ceramic terminal blocks crack under severe vibration and high heat?
A: Standard low-density ceramics are prone to thermal shock failure. Our blocks utilize high-density steatite formulations fired under precise kiln profiles, yielding a uniform crystalline matrix that withstands continuous thermal cycling up to 300°C without micro-fracturing.
Q: What is the recommended maximum tightening torque for terminal screws?
A: Torque limits depend on hardware size. For standard M3.5 terminal screws, maintain tightening torque between 0.8 Nm and 1.0 Nm. Exceeding this threshold can distort the internal brass insert or crack the ceramic walls.
Q: Are these blocks supplied with glazed or unglazed finishes?
A: Our standard blocks feature a glazed exterior surface to prevent environmental dust and moisture ingress, preserving high surface resistivity in humid conditions. Unglazed alternatives are available for specialized high-vacuum applications.
Q: Do you supply Material Test Reports (MTR) with shipments?
A: Yes. Every production lot is shipped with a Certificate of Analysis detailing chemical composition, dielectric breakdown test outcomes, and dimensional QA inspection records.
Request a Technical Quote / Inquiry
To accelerate your quotation or request engineering evaluation samples, please include the following specifications in your message:
- Operating voltage and maximum load current.
- Maximum ambient working temperature.
- Required conductor gauge (mm² or AWG) and pole configuration.
- Target annual usage or trial order volume.
[ Submit RFQ / Request Evaluation Samples ] (Link to secure inquiry form)
