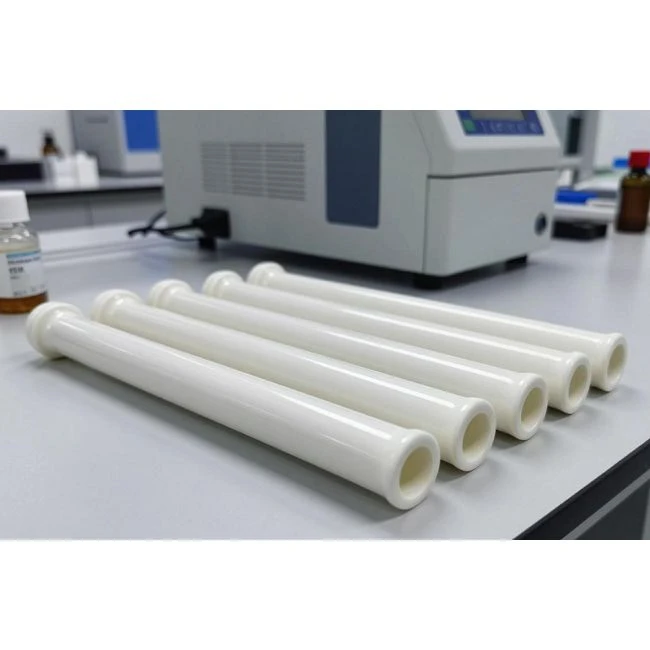

High-Performance Alumina Ceramic Sheath Tubes for Industrial Thermal Sensing
Product Overview & Technical Identification
Alumina ceramic sheath tubes provide mechanical housing and chemical shielding for thermocouples and temperature sensors operating in harsh thermal environments. Engineered from high-purity polycrystalline aluminum oxide, these tubes maintain structural integrity, electrical insulation, and chemical inertness at temperatures reaching 1800°C.
Primary Materials: 95% Al2O3 (Standard Industrial) and 99% Al2O3 (High Purity / Semiconductor Grade).
Manufacturing Process: Isostatic pressing, slip casting, and precision high-temperature sintering.
Standard Diameters: OD from 3mm to 50mm; custom lengths up to 2000mm.
Dimensional Tolerance: Ground outer diameters achieving precision tolerances within +/- 0.10 mm for tight-assembly OEM requirements.
Technical Specification Matrix
|
Property |
95% Alumina Grade |
99% Alumina Grade |
Testing Method / Standard |
|
Alumina Purity (Al2O3) |
>= 95.0% |
>= 99.3% |
ICP-OES Spectrometry |
|
Max Service Temperature |
1500°C |
1800°C |
Continuous Operating Limit |
|
Bulk Density |
> 3.65 g/cm3 |
> 3.89 g/cm3 |
Archimedes Method (ASTM C373) |
|
Apparent Porosity |
< 0.1% |
0.0% (Gas-tight) |
Vacuum Impregnation Test |
|
Flexural Strength (Room Temp) |
280 MPa |
350 MPa |
4-Point Bending (ASTM C1161) |
|
Thermal Conductivity (500°C) |
20 W/(m*K) |
25 W/(m*K) |
Laser Flash Method (ASTM E1461) |
|
Dielectric Strength |
> 10 kV/mm |
> 15 kV/mm |
ASTM D149 |
Material Selection & Engineering Guide
Selecting the correct alumina grade prevents premature sheath failure, element contamination, and unplanned downtime.
95% Alumina Sheath Tubes
- Characteristics: Balanced mechanical strength and moderate thermal shock resistance. Contains glass-phase sintering aids.
- Ideal Applications: General industrial heat-treating furnaces, annealing lines, ceramic kilns, and low-to-medium temperature exhaust gas monitoring (< 1500°C).
- Limitation: Silica and alkali impurities in materials can volatilize at ultra-high temperatures and react with platinum thermocouple wires, causing calibration drift over extended cycles.
99% Alumina Sheath Tubes
- Characteristics: High chemical purity, zero open porosity, and superior electrical resistivity at elevated temperatures. Eliminates silica-induced wire contamination.
- Ideal Applications: Precious metal thermocouple protection (Type B, R, S), vacuum furnaces, reducing atmospheres, and semiconductor processing equipment up to 1800°C.
- Handling Note: Higher susceptibility to thermal shock; preheating protocols are required during furnace startup.
Manufacturing & Quality Control
Reliable performance begins with raw powder preparation and strict thermal profile control in-house.
Green Body Forming: Utilizing dry-bag isostatic pressing to ensure uniform density distribution along long tubes, preventing warping and micro-cracks during high-temperature shrinkage.
High-Temperature Sintering: Fired in gas-fired or high-vacuum electric tunnel kilns at temperatures exceeding 1650°C to achieve full densification and controlled grain growth.
Strict Quality Inspection:
- Dye Penetrant Inspection: Performed on production batches to detect surface micro-fissures.
- Helium Leak Testing: Conducted on 99% purity tubes to verify absolute gas impermeability under pressure differential.
- Dimensional Verification: Laser micrometer scanning across entire length to ensure straightness and wall thickness uniformity.
Industrial Applications
Heat Treatment & Metallurgy: Continuous galvanizing lines, vacuum carburizing furnaces, and molten metal temperature dipping tubes.
Power Generation: Boiler exhaust gas temperature profiling and gasification reactor monitoring.
Advanced Materials: Crystal growth furnaces (Sapphire/Silicon) and high-temperature tube furnace liners.
Supplier Qualification & Manufacturing Capabilities
Production Capacity: 12 automated isostatic presses and 6 continuous tunnel kilns yielding over 50,000 tubes monthly.
Customization Parameters: Custom wall thicknesses down to 0.8 mm, closed-one-end configurations, flanged designs, and dual-bore internal geometries.
Traceability: Raw material batch numbers and sintering logs recorded per production lot, supplied with Material Test Reports (MTR) upon request.
Frequently Asked Questions
Q: How do I prevent thermal shock cracking when inserting the tube into a hot furnace?
A: Preheat the alumina tube gradually by positioning it near the furnace entrance or staging port for 15 to 30 minutes to allow the temperature to ramp up slowly before final insertion into zones exceeding 1000°C.
Q: What is the maximum safe operating temperature difference for 99% alumina?
A: While 99% alumina withstands up to 1800°C in steady-state conditions, thermal gradients exceeding 150°C per minute will induce localized stress fractures. Gradual thermal management is mandatory.
Q: Can you manufacture custom lengths with tight inner and outer diameter tolerances?
A: Yes. Grinding operations on sintered tubes achieve strict outer diameter tolerances (+/- 0.05 mm) and precise concentricity, preventing clearance issues during element insertion.
Q: What is your standard lead time for custom drawings vs. stock sizes?
A: Standard catalog sizes ship within 3 to 5 business days. Custom configurations requiring tooling setup or specialized grinding typically require 3 to 4 weeks.
Engineering Resource & RFQ Submission
[Download Alumina Ceramic Sheath Tubes Technical Data Sheet (PDF)] (Optimized for internal engineering review and committee sign-off)
To evaluate your application requirements, please provide the physical and operational specifications in your inquiry:
Operating Temperature & Atmosphere: (e.g., oxidizing, reducing, vacuum, reactive gases).
Dimensions: Outer Diameter (OD), Inner Diameter (ID), and Total Length.
Configuration: Closed one end / open both ends, straight or flanged.
